Description
The S9 Arc Bridge features a moderate difficulty to assemble bridge with laser cut traction on the bridge decking.
Parts List:
| Full Width Variant | Half Width Variant |
| x4 S9 Arc Bridge truss x9 S1 full Decking x6 H2 full brace x4 H2W full brace x4 P2 support plate x4 H2W half brace |
N/A |
Made from unfinished 3mm MDF, these collapsible bridge kits break down for easy storage, and are laser cut to provide a high quality consistent product.
| Assembled Dimensions | Flat Dimensions |
| Length: 820 mm (32.28″) Width: 179 mm (7.05″) Height: 179 mm (7.05″) |
Length: 410 mm (16.14″) Width: 178 mm (7.01″) Height: 21 mm (0.83″) |
Assembly Instructions:
- Use P2 support plate and H2W brace to attach left first half and left second half of bridge together to create one long bridge truss (if you place the top H2W brace upside down, it will hold the P2 plate better)
- Attach H-bracing to one side of bridge truss
- Attach to second bridge truss (match the slot location on both trusses, do NOT stagger or cross)
- If adding second unit, attach S brace as required and start at step one with next unit
- Add bridge decking to match configuration (this is the ONLY step required for the S3 Small Bridge, as it does not have support slots)
That’s it, assembly is that easy. If you want to keep your setup, you can glue it together as MDF is great for taking glue. Use wood glue, or even white PVA glue. Paint and finish as desired.
Note: MDF is not weather resistant, if using outdoors, please prep and seal accordingly.

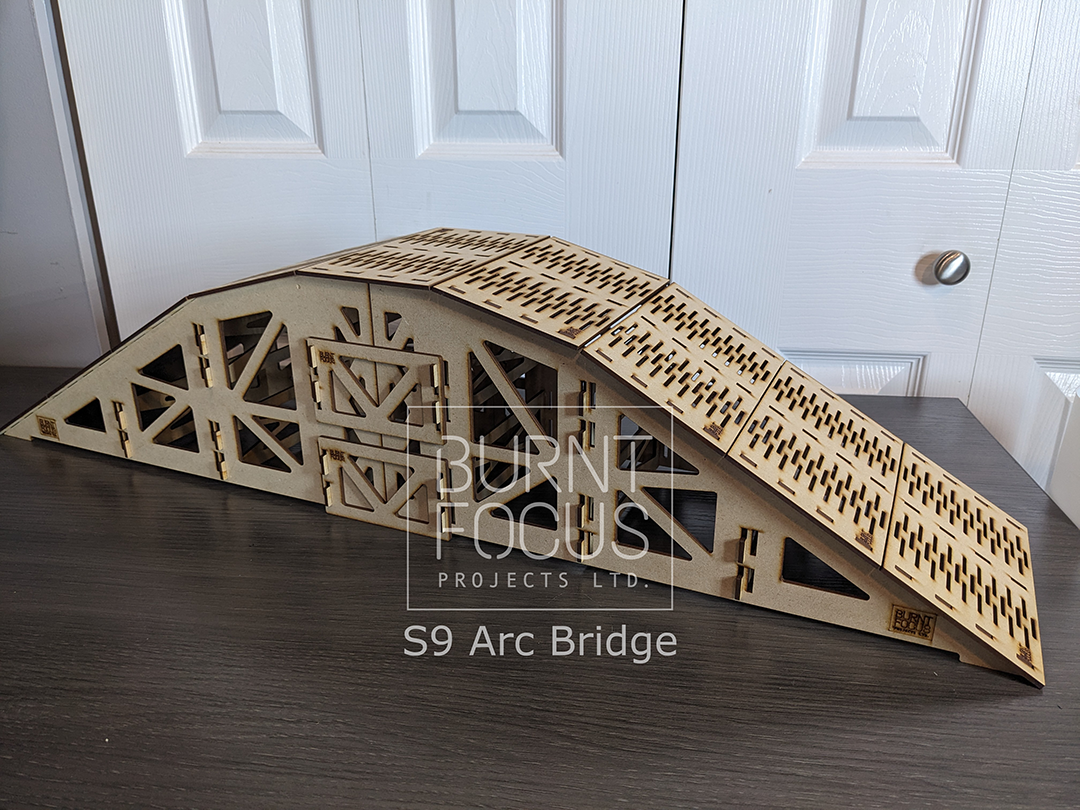

S9 Arc Bridge Kit
