Description

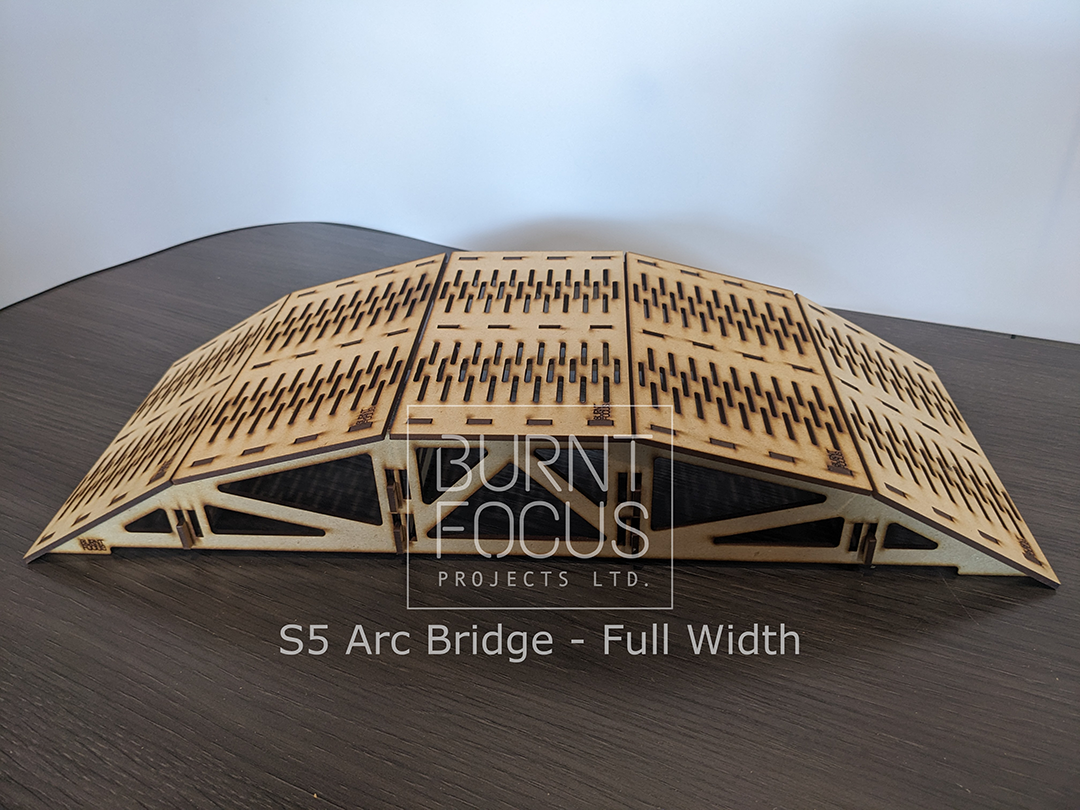

The S5 Arc Bridge features an easy to assemble bridge with laser cut traction on the bridge decking.
Parts List:
| Full Width Variant | Half Width Variant |
| x2 S5 Arc Bridge truss x5 S1 full Decking x2 H2 full brace x2 H1 full brace |
x2 S5 Arc Bridge truss x5 S1 half Decking x2 H2 half brace x2 H1 full brace x2 S2 Brace x2 S1 Brace |
Made from unfinished 3mm MDF, these collapsible bridge kits break down for easy storage, and are laser cut to provide a high quality consistent product.
| Assembled Dimensions | Flat Dimensions |
| Length: 480 mm (18.90″) Width (Full): 179 mm (7.05″) Width (Half): 99 mm (3.90″) Height: 79 mm (3.11″) |
Length: 480 mm (18.90″) Width: 178 mm (7.01″) Height (Full): 9 mm (0.35″) Height (Half): 6 mm (0.24″) |
Assembly Instructions:
- Attach H-bracing to one side of bridge truss
- Attach to second bridge truss (match the slot location on both trusses, do NOT stagger or cross)
- If adding second unit, attach S brace as required and start at step one with next unit
- Add bridge decking to match configuration (this is the ONLY step required for the S3 Small Bridge, as it does not have support slots)
That’s it, assembly is that easy. If you want to keep your setup, you can glue it together as MDF is great for taking glue. Use wood glue, or even white PVA glue. Paint and finish as desired.
Note: MDF is not weather resistant, if using outdoors, please prep and seal accordingly.
