Description

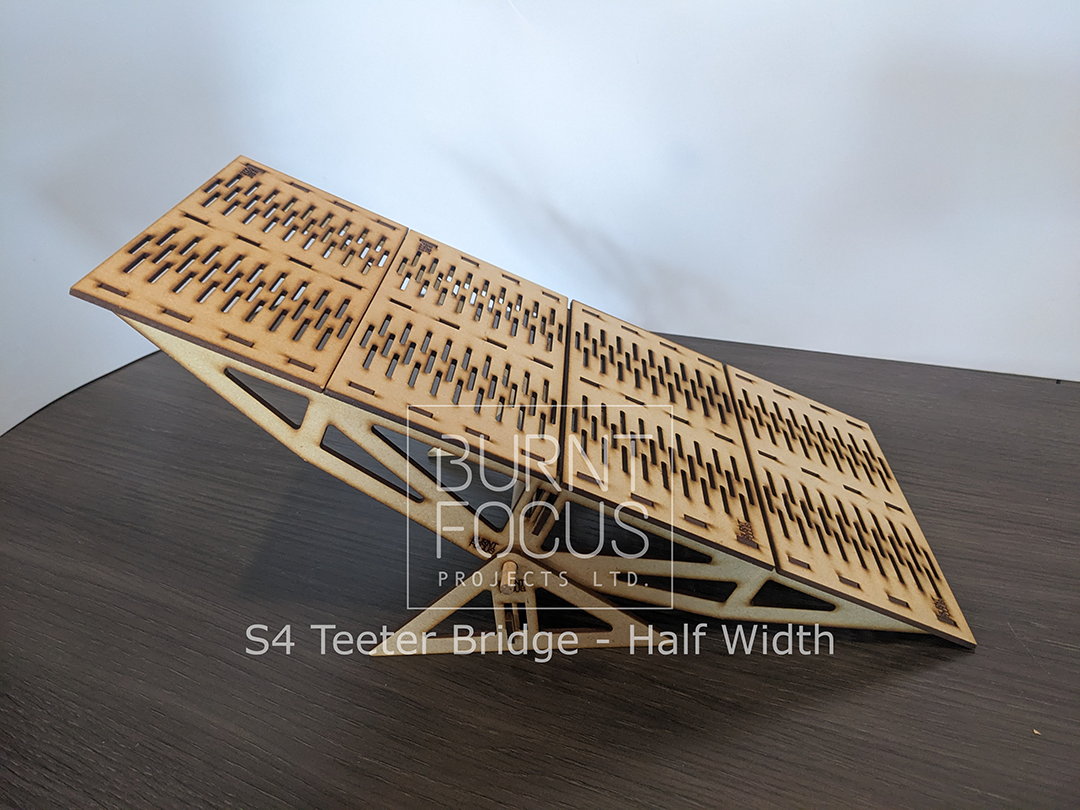

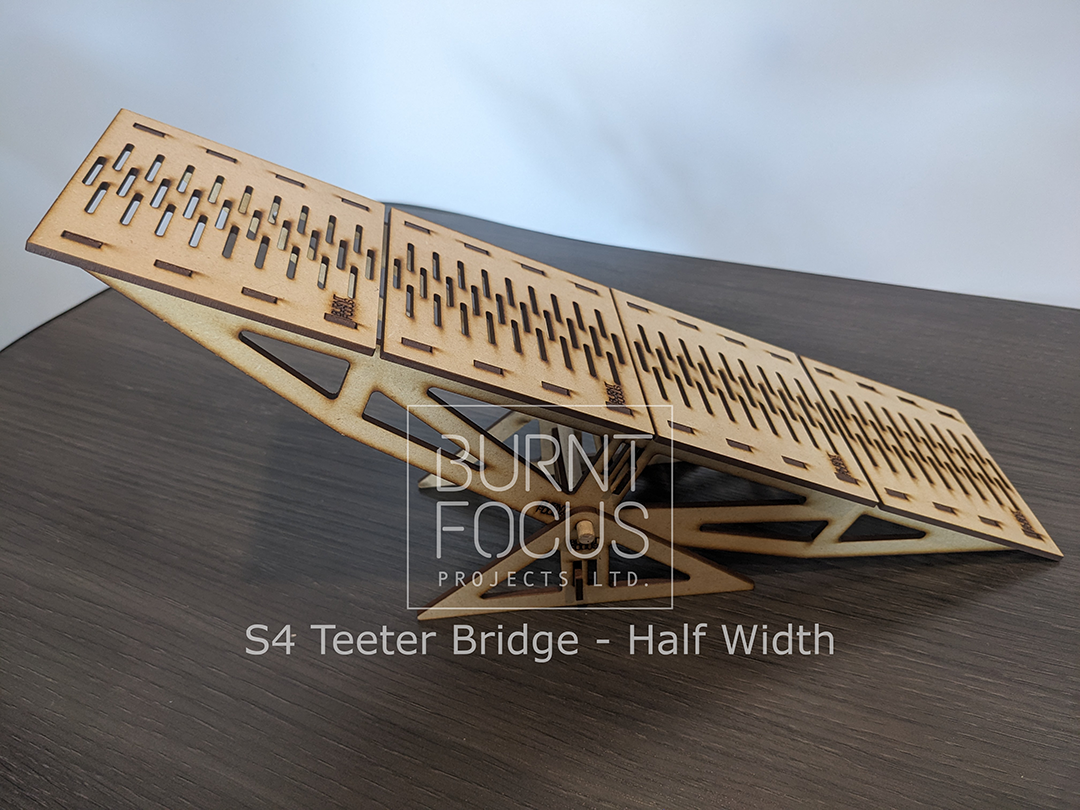

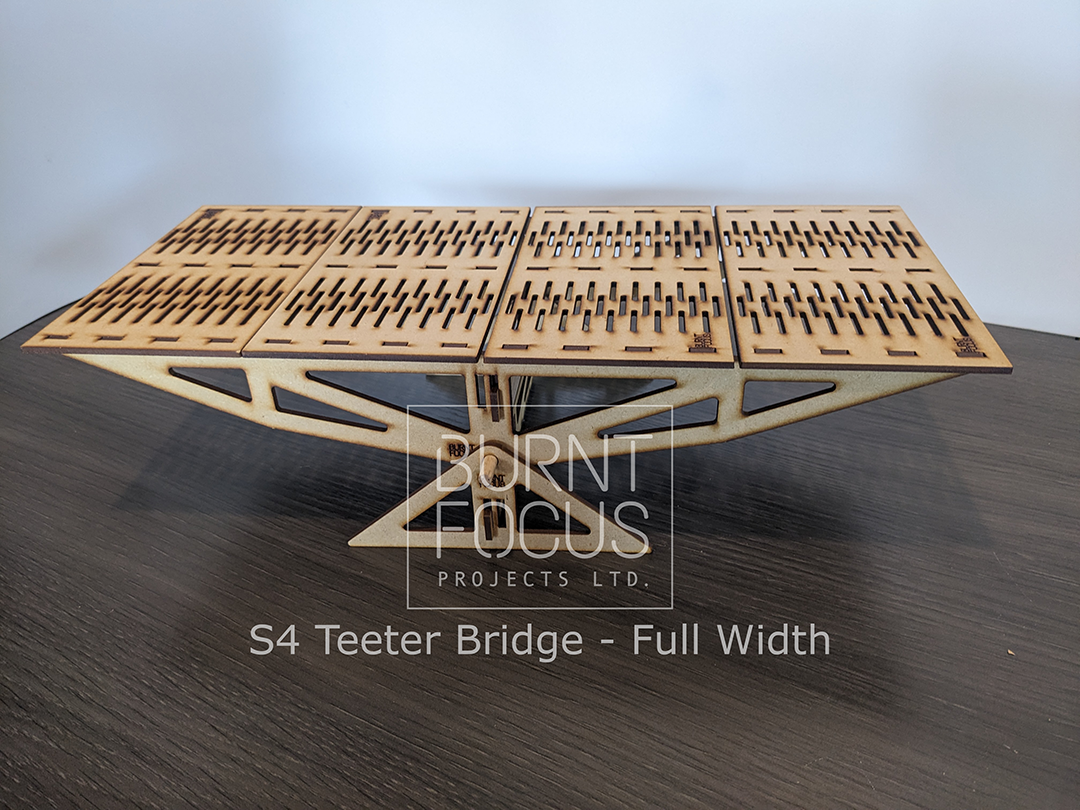

The S4 Teeter Bridge features an easy to assemble bridge with laser cut traction on the bridge decking.
Parts List:
| Full Width Variant | Half Width Variant |
| x2 S4 M Bridge truss x2 S4 M Bridge base x1 1/4″ dowel x4 S1 full Decking x2 H1 full brace |
x2 S4 M Bridge truss x2 S4 M Bridge base x1 1/4″ dowel x4 S1 half Decking x2 H1 full brace x1 S1 Brace |
Made from unfinished 3mm MDF, these collapsible bridge kits break down for easy storage, and are laser cut to provide a high quality consistent product.
| Assembled Dimensions | Flat Dimensions |
| Length: 401 mm (15.79″) Width (Full): 179 mm (7.05″) Width (Half): 99 mm (3.90″) Height: 103 mm (4.06″) |
Length: 401 mm (15.79″) Width: 162 mm (6.38″) Height: 9 mm (0.35″) |
Assembly Instructions:
- Attach H-bracing to one side of bridge truss
- Attach to second bridge truss (match the slot location on both trusses, do NOT stagger or cross)
- If adding second unit, attach S brace as required and start at step one with next unit
- Insert down through round holes on both the truss and the base
- Add bridge decking to match configuration (this is the ONLY step required for the S3 Small Bridge, as it does not have support slots)
That’s it, assembly is that easy. If you want to keep your setup, you can glue it together as MDF is great for taking glue. Use wood glue, or even white PVA glue. Paint and finish as desired.
Note: MDF is not weather resistant, if using outdoors, please prep and seal accordingly.
